Description

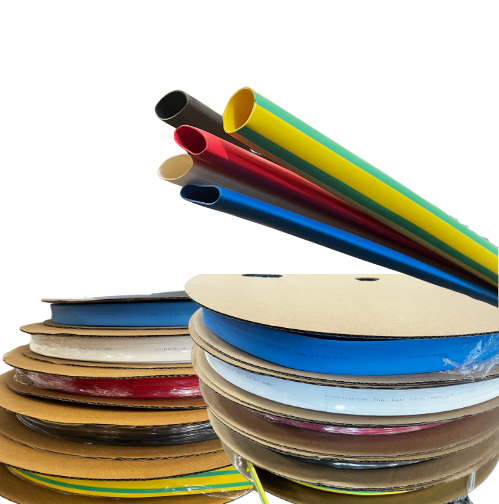

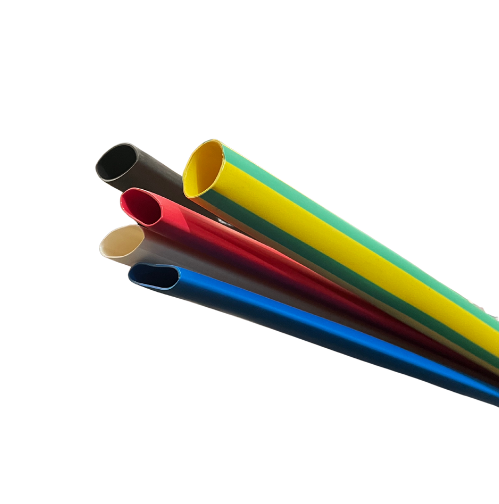

Heat Shrink is a flexible tubing, suitable for all electrical and electronic applications. It exhibits excellent electrical and mechanical properties and suits indoor or outdoor installations.
Available in Red, White, Blue, Black, Yellow, Green/Yellow.
Other colours available on request.
Advantages
• Cross-linked Polyolefin
• Flame Retardant
• Highly Flexible
• UV Stabilized
• Corrosion Resistant
Specifications:
Preshrunk Dia(mm): 1.5mm
Shrunk Dia(mm): 0.65mm
Wall Thickness (mm): 0.28mm
Laid Flat (mm): 2.36mm
Material
• Cross-linked Polyolefin
Operating Temperature
• -45˚C to 125˚C
• -49˚F to 257˚F
Voltage Rating
• 600V
(Sizes above 31.5mm have also been tested at 1000V)
Standards
• UL224, ASTM D2671
Inspection and Testing
• Visual Inspection
• Physical measurement
• Shrinking temperature test
• Shrinking ratio test
• Flame retardant test to UL94
• Tensile Strength test to AS/NZS 3808 and ASTM D2671
• Thermal heat aging test to AS/NZS 3808 and ASTM D2671
• UV resistant type test
