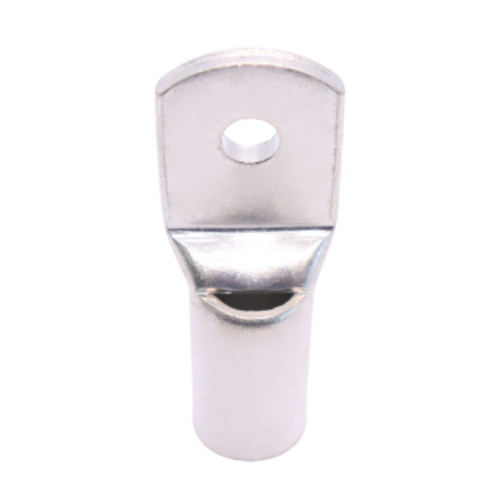

<h3>Description</h3> <p>TriCab Bell Mouth Half-Moon lugs are designed for our flexible cables. Tin plating significantly enhances both mechanical and electrical performance. The half-moon inspection hole provides visual confirmation that the cable has been installed correctly when crimping.<br /> The bell mouth enables easy insertion of our finely stranded conductor.</p> <p><strong>For larger sizes Long Barrel versions are available</strong></p>
Operating Temperature
-55°C to 155°C
-67°F to 311°F
Materials
Barrel - High Conductivity Annealed copper (99.9% purity). Electrolytic tin-plated.
Standards
AS/NZS 4325.1, IEC 61238-1-1
Inspection and Testing
Visual inspection
Physical measurement
Weight measurement
Conductor fit
Mechanical pulling test to AS/NZS 4325.1 and IEC 61238-1-1

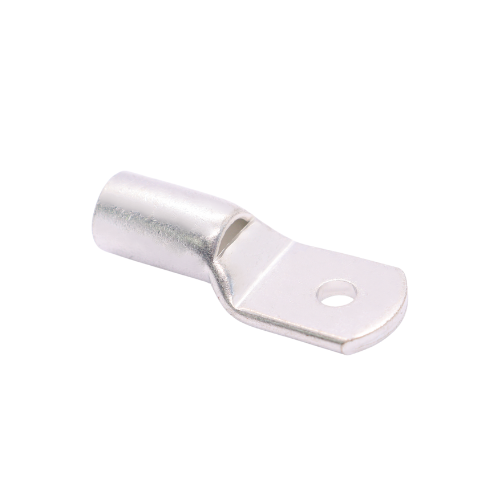

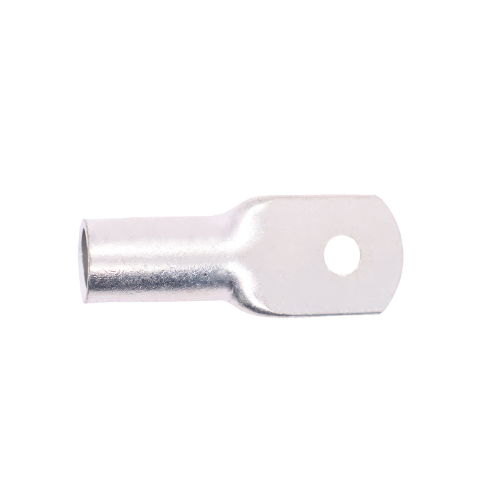

TriCab Tinned Straight Half-Moon Copper Lugs are designed as general-purpose lugs for terminating copper conductors.
Tin plating significantly enhances both mechanical and electrical performance. The half-moon inspection hole provides visual confirmation that the cable has been installed correctly when crimping.
The 45˚ chamfer enables easier insertion of finely stranded conductors.
